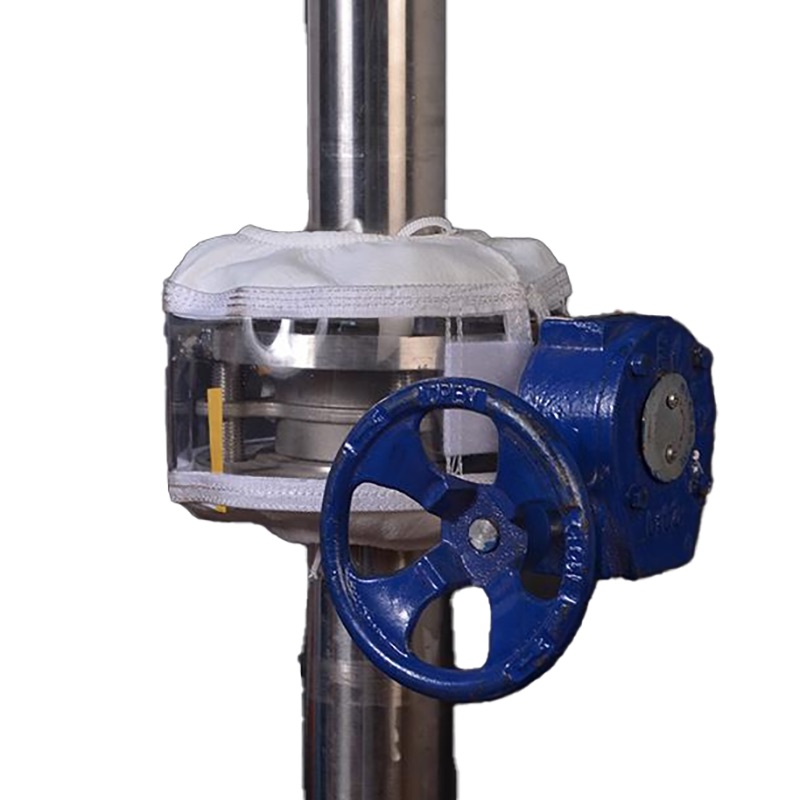

MQ Industrial Valve Spray Shield provides full-wrap protection for ball valves and butterfly valves in chemical, petroleum, smelting and energy plants, using PTFE, PVC and PP materials with transparent and opaque options to block hazardous spray from valve leakage.
oggetto numero :
MQ-VSSOrdine (MOQ) :
1pcPagamento :
TT, LC, PaypalOrigine del prodotto :
ChinaColore :
White Body with Transparent SightPorto di spedizione :
Shanghai, Ningbo, QingdaoTempi di consegna :
3-5 daysDescription
MQ Industrial Valve Spray Shield is a new generation pipeline protection product developed to help chemical enterprises establish safety supervision systems, blocking hazardous medium spray caused by valve leakage and protecting workers and nearby equipment from damage.
Application
MQ Industrial Valve Spray Shield is widely used in chemical, petroleum, smelting and energy plants for leak and spray protection of shut-off valves, check valves and control valves, preventing minor undetectable valve spray from developing into major safety accidents.
Specification
|
Type |
Applicable Valve |
|---|---|
|
Full-wrap ball valve shield |
Ball valve |
|
Full-wrap butterfly valve shield |
Butterfly valve |
|
Sectional wrap |
Gate / Globe / Check valve, etc. |
Benefits
MQ Valve Spray Shield captures the initial tiny leakage that is hard to detect, avoids fluid jet injury to personnel and nearby equipment, allows visual inspection through the transparent cover without removal, and supports safer daily operation and maintenance.
MQ Valve Spray Shield resists the following chemicals under normal operating conditions. For special media, mixed solutions or extreme concentrations, please contact us for confirmation.
PTFE Material
|
Inorganic Acids |
Alkalis & Salts |
Organic Solvents |
Others |
|---|---|---|---|
|
Acetic acid |
Aluminum nitrate |
Acetaldehyde |
Naphtha |
|
Formic acid |
Aluminum sulfate |
Acetone |
Phenol |
|
Hydrochloric acid 98% |
Chlorine dioxide |
Acetophenone |
Toluene |
|
Hydrobromic acid |
Sulfur trioxide |
Aniline |
Mercury |
|
Nitric acid 50% |
Sulfur dioxide |
Nitrobenzene |
|
|
Sulfuric acid 98% |
Chromium trioxide |
Benzene |
|
|
Fuming sulfuric acid |
Copper nitrate |
Ethanol |
|
|
Phosphoric acid |
Ferrous nitrate |
Ethyl acetate |
|
|
Mercury nitrate |
Formaldehyde |
||
|
Ammonium chloride |
Glucose |
||
|
Ammonium fluoride |
Methanol |
||
|
Calcium hydroxide |
|||
|
Potassium hydroxide 50% |
|||
|
Sodium hydroxide 40% |
|||
|
Sodium hydroxide 50% |
|||
|
Aluminum hydroxide |
|||
|
Chromium fluoride |
|||
|
Hydrogen sulfide |
|||
|
Hydrogen peroxide 80% |
|||
|
Hydrogen peroxide 90% |
|||
|
Mercury nitrate |
|||
|
Sodium peroxide |
|||
|
Ammonium sulfite |
|||
|
Chlorosulfonic acid |
|||
|
Sodium sulfide |
|||
|
Aqua regia |
|||
|
Phosphorus pentachloride |
PVC Material
|
Inorganic Acids |
Alkalis & Salts |
Organic Solvents |
Others |
|---|---|---|---|
|
Acetic acid |
Aluminum nitrate |
Acetaldehyde |
Naphtha |
|
Formic acid |
Aluminum sulfate |
Phenol |
|
|
Hydrochloric acid 98% |
Chlorine dioxide |
Toluene |
|
|
Hydrobromic acid |
Sulfur trioxide |
Mercury |
|
|
Nitric acid 50% |
Sulfur dioxide |
||
|
Sulfuric acid 98% |
Chromium trioxide |
||
|
Fuming sulfuric acid |
Copper nitrate |
||
|
Phosphoric acid |
Ferrous nitrate |
||
|
Mercury nitrate |
|||
|
Ammonium chloride |
|||
|
Ammonium fluoride |
|||
|
Calcium hydroxide |
|||
|
Potassium hydroxide 50% |
|||
|
Sodium hydroxide 40% |
|||
|
Sodium hydroxide 50% |
|||
|
Aluminum hydroxide |
|||
|
Chromium fluoride |
|||
|
Hydrogen sulfide |
|||
|
Hydrogen peroxide 80% |
|||
|
Mercury nitrate |
|||
|
Sodium peroxide |
|||
|
Ammonium sulfite |
|||
|
Chlorosulfonic acid |
|||
|
Sodium sulfide |
|||
|
Phosphorus pentachloride |
PP Material
|
Inorganic Acids |
Organic Acids |
Alkalis & Salts |
Solvents & Others |
|---|---|---|---|
|
Acetic acid |
Acetaldehyde |
Aluminum nitrate |
Naphtha |
|
Formic acid |
Ammonium chloride |
Toluene |
|
|
Glacial acetic acid |
Ammonium fluoride |
||
|
Hydrochloric acid 98% |
Potassium hydroxide 50% |
||
|
Hydrobromic acid |
Sodium hydroxide 40% |
||
|
Nitric acid 50% |
Sodium hydroxide 50% |
||
|
Sulfuric acid 98% |
Aluminum hydroxide |
||
|
Fuming sulfuric acid |
Calcium hydroxide |
||
|
Phosphoric acid |
Mercury nitrate |
||
|
Sulfur trioxide |
Ferrous nitrate |
||
|
Chlorine dioxide |
Copper nitrate |
||
|
Chromium trioxide |
Ammonium sulfite |
||
|
Hydrogen peroxide 80% |
Sodium hypochlorite |
||
|
Chlorosulfonic acid |
Chromium fluoride |
||
|
Hydrogen sulfide |
Sodium sulfide |
||
|
Phosphorus pentachloride |
|||
|
Sulfur dioxide |
|||
|
Sodium peroxide |
Our advantages
1. As a professional manufacturer over 15 years, we win our customers with good quality, best service and factory price.
2. Our products are 100% original and have strict QC inspection before shipment.
3. Professional and efficient sales team to serve for you diligently.
4. Sample order is welcomed and will be delivered within 1-3 days.
5. We provide OEM/ODM service according to your requirements.
